Flow Cell

Glass, stainless steel, or PEEK flow cell for flow-through system measurements

You can have most Unisense microsensors mounted in flow cells to make measurements in a flow-through system. The flow cell is available in a glass version, a stainless steel version, and a PEEK version. Read more...

Read more
Ordering information
Flow Cell

Measure with Unisense microsensors in a flow cell

Glass flow cell

The glass flow cell is fixed on the microsensor with a protection cap. This flow cell is available in two sizes:

1: Inner diameter 4 mm, outer diameter 6mm
2. Inner diameter 6 mm, outer diameter 8mm

Tubing should fit tightly around the flow cell ends.

Flowcell glass

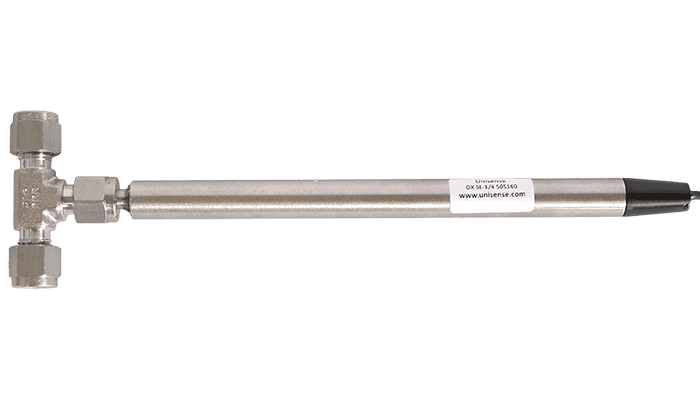

Stainless steel flow cell

The stainless steel flow cell is pressure compensated for measurements in high-pressure systems. This flow cell is pressure resistant to up 10 bar. It is based on a Swagelok© T-piece for either 1/4 or 1/8 inch tubing.

Flowcell steel

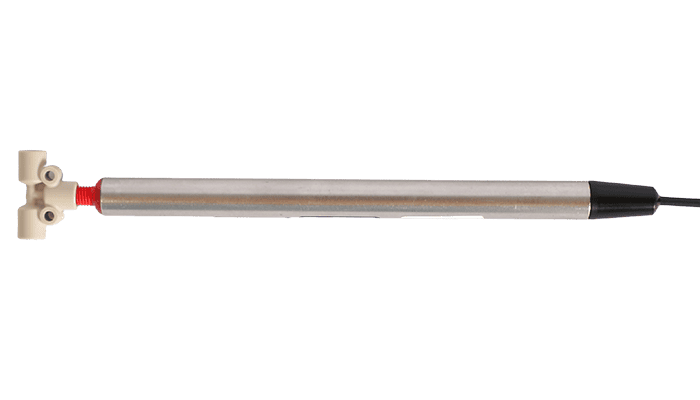

PEEK flow cell

The PEEK flow cell is for 1/8 or 1/16 inch tubing.

The sensor size, response time, and sensitivity are chosen to match the flow rate and system characteristics.

Flowcell PEEK
Item no Description
Item no
XX-T-GLASS-6
Description
Sensor in glass FT-cell 6mm outer diameter
Item no
XX-FT-GLASS-8
Description
Sensor in glass FT-cell 8mm outer diameter
Item no
XX-SL-1/4
Description
Sensor in FT-cell 1/4'' Swagelok Tee
Item no
XX-SL-1/8
Description
Sensor in FT-cell 1/8'' Swagelok Tee
Item no
XX-PEEK-1/8
Description
Sensor in FT-cell 1/8'' PEEK Tee
Item no
XX-PEEK-1/16
Description
Sensor in FT-cell 1/16'' PEEK Tee

Related Publications

Respiration rate of stream insects measured in situ along a large altitude range
Rostgaard, Stig et all (2005), Hydrobiologia, vol. 549, 79-98
Read more
Vertical profiles of current velocity and dissolved oxygen saturation in biofilms on artificial and natural substrates
Nakano, Shin Ichi et all (2006), Limnology, vol. 7, 213-218
Read more
